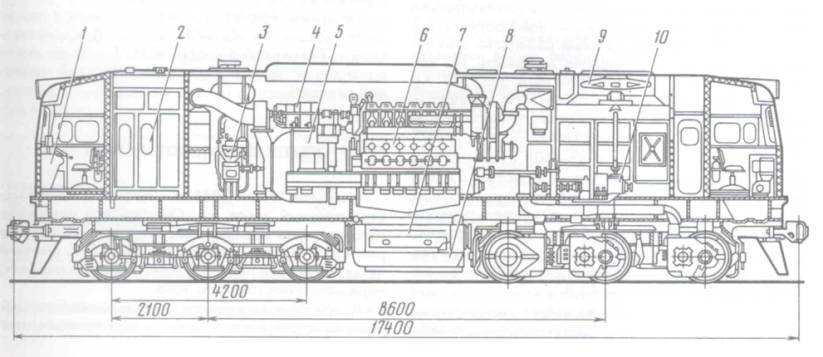

1 – control
panel, 2 – high-voltage equipment compartment, 3 – compressor, 4 – control
systems, 5 – generator, 6 – diesel engine,
7 – battery, 8 – fuel tank, 9 – cooling fan,
10 – cooling liquid duct)
